1、问题描述

org.springframework.core.ParameterNameDiscoverer#getParameterNames(java.lang.reflect.Method)

获取正常实现类的方法参数正常，但是通过调用接口代理类的方法则获取不到方法参数名称。

切面相关代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
@Aspect
@Component
@Slf4j
public class WxFuncAuthAspect {
    /**
     * 用于SpEL表达式解析.
     */
    private final SpelExpressionParser parser = new SpelExpressionParser();
    /**
     * 用于获取方法参数定义名字.
     */
    private final ParameterNameDiscoverer nameDiscoverer = new DefaultParameterNameDiscoverer();

    @Before(value = "@annotation(wxFuncAuth)")
    public void wxFuncAuth(JoinPoint joinPoint, WxFuncAuth wxFuncAuth) {
        //获取appId
        String appId = generateKeyBySpringEL(wxFuncAuth.appId(), joinPoint);
    }

    /**
     * 根据el表达式字符串生成key
     *
     * @param elString  el表达式字符串
     * @param joinPoint joinPoint
     * @return key
     */
    private String generateKeyBySpringEL(String elString, JoinPoint joinPoint) {
        MethodSignature methodSignature = (MethodSignature) joinPoint.getSignature();
        Expression expression = parser.parseExpression(elString);
        EvaluationContext context = new MethodBasedEvaluationContext(new Object(), methodSignature.getMethod(), joinPoint.getArgs(), nameDiscoverer);
        return Objects.requireNonNull(expression.getValue(context)).toString();
    }
}

MethodBasedEvaluationContext类内部获取方法参数名数组核心逻辑：

1
2
//这里的parameterNameDiscoverer为DefaultParameterNameDiscoverer
String[] paramNames = this.parameterNameDiscoverer.getParameterNames(this.method);

1.1、正常例子

1
2
3
4
5
6
7
8
9
10
11
12
@Component
public class WxFuncAuthAnnotationCaller {
    /***
     * 正常场景测试
     * @param appId appId
     * @return String
     */
    @WxFuncAuth(appId = "#appId", funcs = {"1", "2"})
    public String callNormal(String appId) {
        return appId + ": I'm very good";
    }
}

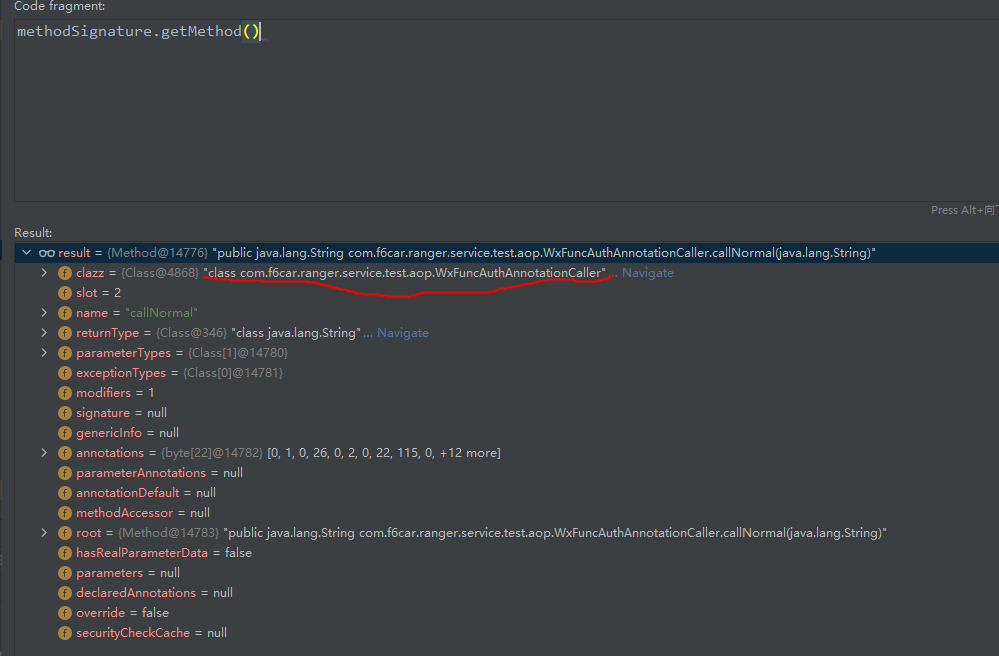

例子中，WxFuncAuthAnnotationCaller类没有实现接口，切面WxFuncAuthAspect中的generateKeyBySpringEL方法中，methodSignature.getMethod()获取的值为：public java.lang.String com.f6car.ranger.service.test.aop.WxFuncAuthAnnotationCaller.callNormal(java.lang.String)

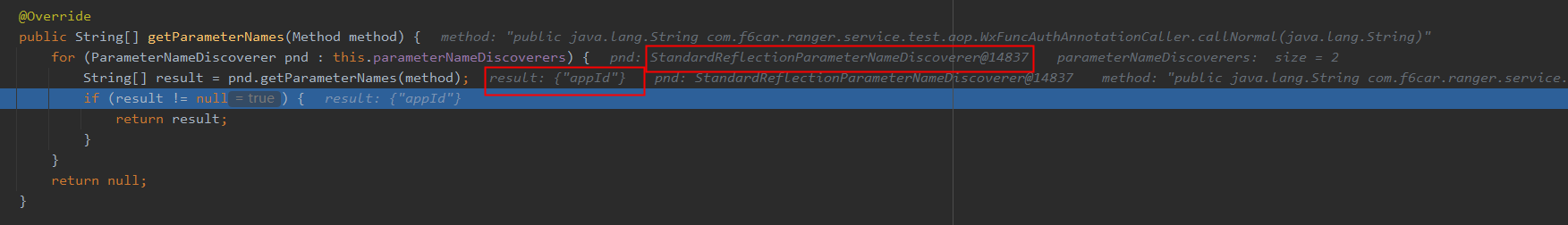

可正常获取参数名称：


1.2、异常例子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
public interface WechatTagsService {
    WxTagsVo getWxTags(String appId, String accessToken);
}
@Service
@Slf4j
public class WechatTagsServiceImpl implements WechatTagsService {
    @Override
    @WxFuncAuth(appId = "#appId", funcs = {WxFuncscopeCategoryConstant.USER_MANAGEMENT})
    public WxTagsVo getWxTags(String appId, String accessToken) {
        WxHttpBaseRequest wxHttpBaseRequest = new WxHttpBaseRequest();
        String url = String.format(WechatTagsUrlConst.WX_TAGS_GET, accessToken);
        wxHttpBaseRequest.setUrl(url);
        wxHttpBaseRequest.setAppId(appId);
        String response = OkHttpUtils.doGetSSL(wxHttpBaseRequest);
        return JSON.parseObject(response, WxTagsVo.class);
    }
}
public class WechatTagsServiceTest extends com.f6car.ranger.test.base.BaseTest {
    @Autowired
    private WechatOpenManager wechatOpenManager;
    //注意这里，注入的是接口的代理实现类
    @Autowired
    private WechatTagsService wechatTagsService;

    /**
     * 获取某个微信公众号下已经创建好的标签
     */
    @Test
    public void testGetWxTags() {
        String appId = "wx8739309c6a848344";
        //接口调用凭证
        String accessToken = wechatOpenManager.getAuthAccessTokenByAppId(appId);
        WxTagsVo wxTagsVo = wechatTagsService.getWxTags(appId, accessToken);
        logger.info(JSON.toJSONString(wxTagsVo));
    }

}

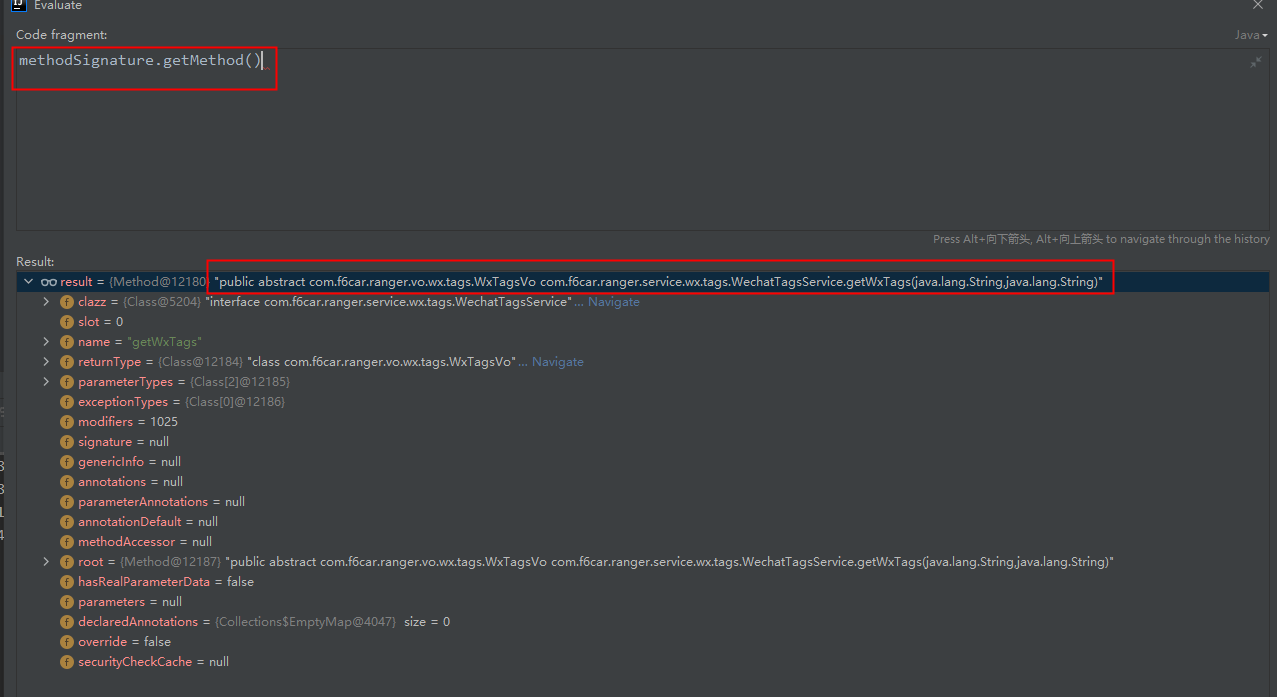

WechatTagsServiceImpl实现了WechatTagsService接口，调用时通过接口调用方法。切面WxFuncAuthAspect中的generateKeyBySpringEL方法中，methodSignature.getMethod()获取的值入下图所示，获取的并不是具体实现类的方法：

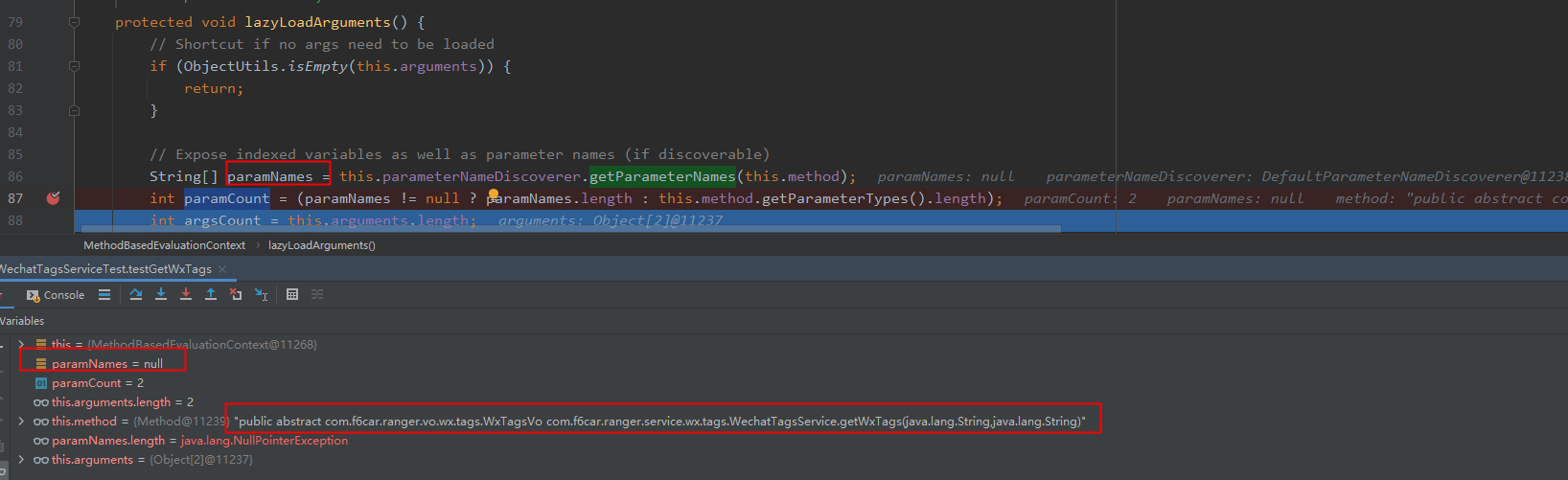

方法参数获取不到：


2、解决思路

想到以前使用的@Cacheable也是使用springEL表达式拼接缓存key，也是通过接口调用，那必然是能拿到代理实现类方法的参数名称的，为什么springframework.cache就可获取到方法的参数，而我写的获取不到呢？

使用@Cacheable的例子：

1
2
3
4
5
6
7
8
9
10
11
12
13
/**
 * 根据场景ID查询消息场景信息
 *
 * @param msgSceneSo 过滤条件 msgSceneId
 * @return 消息场景信息
 */
@Override
@Transactional(rollbackFor = Exception.class, timeout = 1)
@DataSource(DataSourceType.READONLY)
@Cacheable(value = "msgScene", key = "'queryMsgSceneById'+#msgSceneSo.msgSceneId", condition = "#msgSceneSo.msgSceneId!=null", unless = "#result==null")
public MsgSceneVo queryMsgSceneById(MsgSceneSo msgSceneSo) {
    return queryMsgSceneMethod(msgSceneSo);
}

所以开始了边debug边啃源码，终于找到了有意思的地方：

org.springframework.cache.interceptor.CacheOperationExpressionEvaluator#createEvaluationContext(java.util.Collection, java.lang.reflect.Method, java.lang.Object[], java.lang.Object, java.lang.Class, java.lang.Object, org.springframework.beans.factory.BeanFactory)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/**
	 * Create an {@link EvaluationContext}.
	 * @param caches the current caches
	 * @param method the method
	 * @param args the method arguments
	 * @param target the target object
	 * @param targetClass the target class
	 * @param result the return value (can be {@code null}) or
	 * {@link #NO_RESULT} if there is no return at this time
	 * @return the evaluation context
	 */
	public EvaluationContext createEvaluationContext(Collection<? extends Cache> caches,
			Method method, Object[] args, Object target, Class<?> targetClass, Object result,
			BeanFactory beanFactory) {

		CacheExpressionRootObject rootObject = new CacheExpressionRootObject(
				caches, method, args, target, targetClass);
        //看这里！！！！！
		Method targetMethod = getTargetMethod(targetClass, method);
		CacheEvaluationContext evaluationContext = new CacheEvaluationContext(
				rootObject, targetMethod, args, getParameterNameDiscoverer());
		if (result == RESULT_UNAVAILABLE) {
			evaluationContext.addUnavailableVariable(RESULT_VARIABLE);
		}
		else if (result != NO_RESULT) {
			evaluationContext.setVariable(RESULT_VARIABLE, result);
		}
		if (beanFactory != null) {
			evaluationContext.setBeanResolver(new BeanFactoryResolver(beanFactory));
		}
		return evaluationContext;
	}

看到一行感觉好像没用的代码：Method targetMethod = getTargetMethod(targetClass, method);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
private Method getTargetMethod(Class<?> targetClass, Method method) {
	AnnotatedElementKey methodKey = new AnnotatedElementKey(method, targetClass);
	Method targetMethod = this.targetMethodCache.get(methodKey);
	if (targetMethod == null) {
		targetMethod = AopUtils.getMostSpecificMethod(method, targetClass);
		this.targetMethodCache.put(methodKey, targetMethod);
	}
	return targetMethod;
}

/**
 * Given a method, which may come from an interface, and a target class used
 * in the current AOP invocation, find the corresponding target method if there
 * is one. E.g. the method may be {@code IFoo.bar()} and the target class
 * may be {@code DefaultFoo}. In this case, the method may be
 * {@code DefaultFoo.bar()}. This enables attributes on that method to be found.
 * <p><b>NOTE:</b> In contrast to {@link org.springframework.util.ClassUtils#getMostSpecificMethod},
 * this method resolves Java 5 bridge methods in order to retrieve attributes
 * from the <i>original</i> method definition.
 * @param method the method to be invoked, which may come from an interface
 * @param targetClass the target class for the current invocation.
 * May be {@code null} or may not even implement the method.
 * @return the specific target method, or the original method if the
 * {@code targetClass} doesn't implement it or is {@code null}
 * @see org.springframework.util.ClassUtils#getMostSpecificMethod
 */
public static Method getMostSpecificMethod(Method method, Class<?> targetClass) {
       //！！！！实现类的方法
	Method resolvedMethod = ClassUtils.getMostSpecificMethod(method, targetClass);
	// If we are dealing with method with generic parameters, find the original method.
	return BridgeMethodResolver.findBridgedMethod(resolvedMethod);
}

debug之后发现了这里的秘密：AopUtils.getMostSpecificMethod工具类可以获取真正实现类的方法。

3、解决

所以修改WxFuncAuthAspect.generateKeyBySpringEL方法，增加一行代码解决问题：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
 * 根据el表达式字符串生成key
 *
 * @param elString  el表达式字符串
 * @param joinPoint joinPoint
 * @return key
 */
private String generateKeyBySpringEL(String elString, JoinPoint joinPoint) {
    MethodSignature methodSignature = (MethodSignature) joinPoint.getSignature();
    //增加了这一行代码！！！！
    Method targetMethod = AopUtils.getMostSpecificMethod(methodSignature.getMethod(), AopUtils.getTargetClass(joinPoint.getTarget()));
    Expression expression = parser.parseExpression(elString);
    EvaluationContext context = new MethodBasedEvaluationContext(new Object(), targetMethod, joinPoint.getArgs(), nameDiscoverer);
    return Objects.requireNonNull(expression.getValue(context)).toString();
}

4、验证

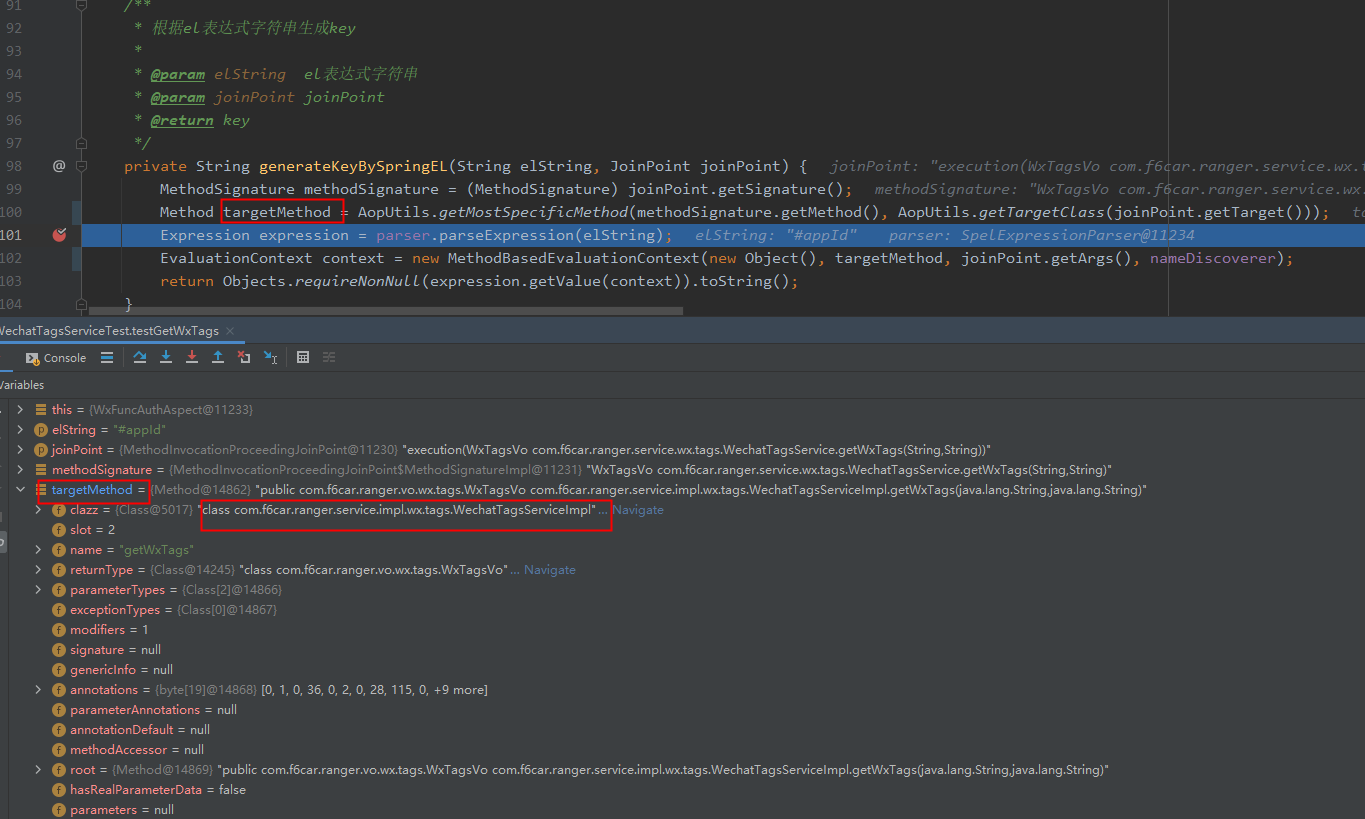

method值变成了具体实现类的方法：public com.f6car.ranger.vo.wx.tags.WxTagsVo com.f6car.ranger.service.impl.wx.tags.WechatTagsServiceImpl.getWxTags(java.lang.String,java.lang.String)

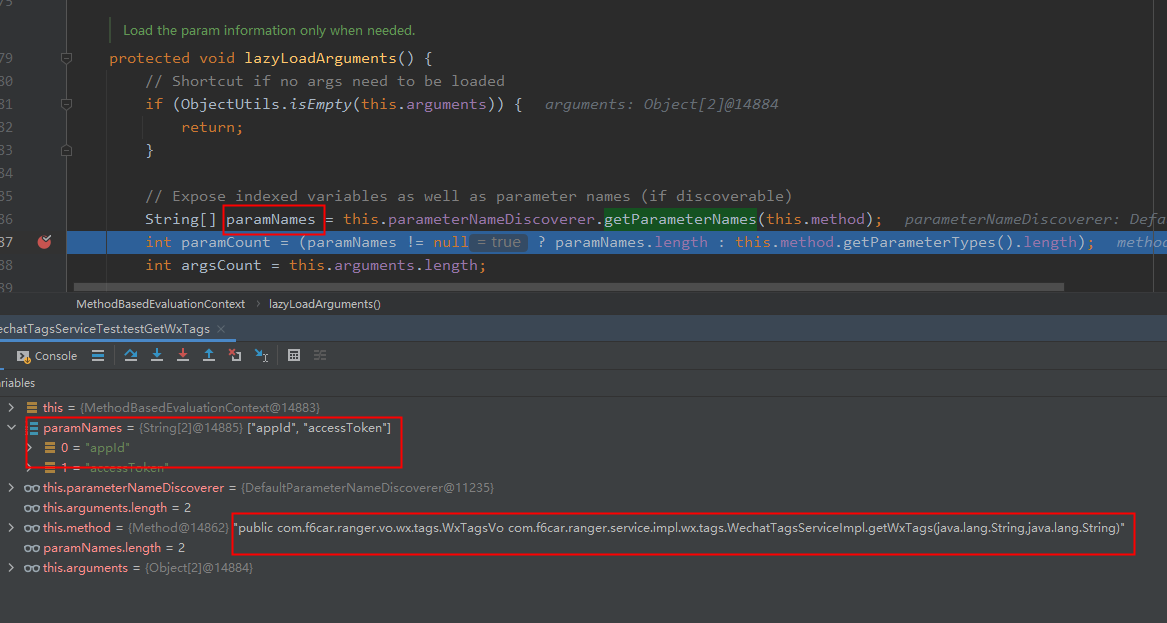

方法的参数名也获取到了，问题解决.


5、总结

  • 自己想的一些技术思路，其实很多前人都已经实现，要善于使用工具。
  • 在使用工具的同时，要简单了解其实现原理，便于问题定位及技术参考。
