从三个方向学习：

系统启动，加载J2CacheSpringRedisAutoConfiguration配置
J2Cache缓存集群策略SpringRedisPubSubPolicy
二级缓存操作：SpringRedisProvider以及SpringRedisGenericCache、SpringRedisCache

1、RedisTemplate对象创建

J2CacheSpringRedisAutoConfiguration配置文件在RedisAutoConfiguration之后，J2CacheAutoConfiguration之前加载。
通过j2cache.redis-client可以配置redis客户端：Jedis或则Lettuce,本次学习使用Lettuce。
使用RedisStandaloneConfiguration构建LettuceConnectionFactory对象。
最后将RedisTemplate的对象交给Spring管理。

@Bean("j2CacheRedisTemplate")
public RedisTemplate<String, Serializable> j2CacheRedisTemplate(
  @Qualifier("j2CahceRedisConnectionFactory") RedisConnectionFactory j2CahceRedisConnectionFactory,
  @Qualifier("j2CacheValueSerializer") RedisSerializer<Object> j2CacheSerializer) {
  RedisTemplate<String, Serializable> template = new RedisTemplate<String, Serializable>();
  template.setKeySerializer(new StringRedisSerializer());
  template.setHashKeySerializer(new StringRedisSerializer());
  template.setDefaultSerializer(j2CacheSerializer);
  template.setConnectionFactory(j2CahceRedisConnectionFactory);
  return template;
}
//j2CahceRedisConnectionFactory为：LettuceConnectionFactory
//j2CacheSerializer为：J2CacheSerializer，底层使用net.oschina.j2cache.util.SerializationUtils#g_serializer
@Primary
@Bean("j2CahceRedisConnectionFactory")
public LettuceConnectionFactory lettuceConnectionFactory(net.oschina.j2cache.J2CacheConfig j2CacheConfig) {
  //简化了一下
  LettucePoolingClientConfiguration.LettucePoolingClientConfigurationBuilder config = LettucePoolingClientConfiguration.builder();
  config.commandTimeout(Duration.ofMillis(5000));
  config.poolConfig(getGenericRedisPool());
  RedisStandaloneConfiguration single = new RedisStandaloneConfiguration("xxxx", 6379);
  single.setDatabase(10);
  single.setPassword("****");
  LettuceConnectionFactory connectionFactory = new LettuceConnectionFactory(single, config.build());
  return connectionFactory;
}

再看RedisTemplate类：

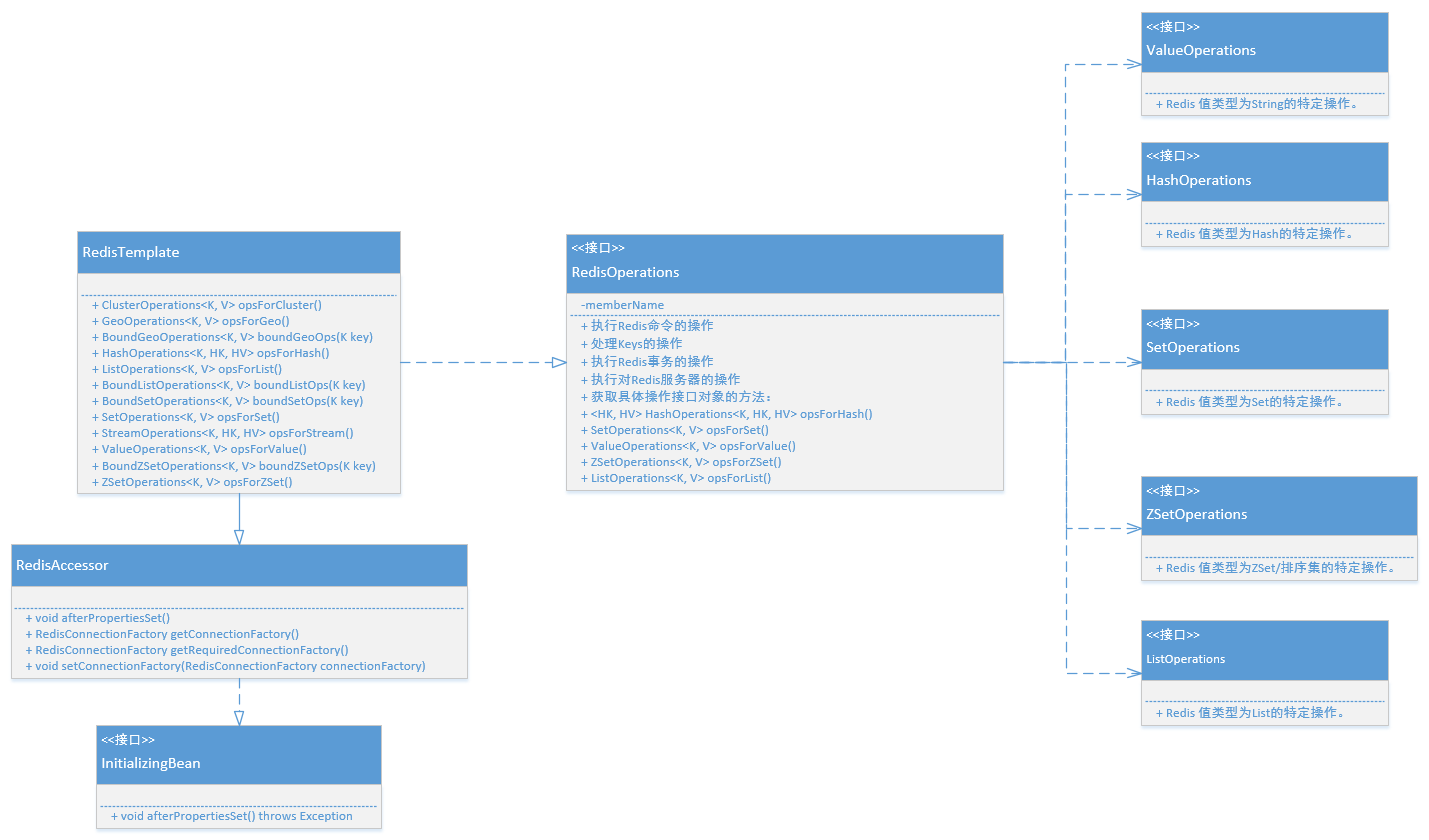

RedisTemplate继承了RedisAccessor类，实现RedisOperations和BeanClassLoaderAware接口，其中RedisAccessor维护了redis连接工厂，RedisOperations定义redis相关操作。

这里的connectionFactory为LettuceConnectionFactory：操作Redis的准备工作

private @Nullable AbstractRedisClient client;
private @Nullable LettuceConnectionProvider connectionProvider;
private @Nullable LettuceConnectionProvider reactiveConnectionProvider;

public void afterPropertiesSet() {
  //获取RedisClient客户端
  this.client = createClient();
  //org.springframework.data.redis.connection.lettuce.LettuceConnection#CODEC
  //ByteArrayCodec
  this.connectionProvider = new ExceptionTranslatingConnectionProvider(createConnectionProvider(client, CODEC));

  //org.springframework.data.redis.connection.lettuce.LettuceReactiveRedisConnection#CODEC
  //ByteBufferCodec
  this.reactiveConnectionProvider = new ExceptionTranslatingConnectionProvider(
    createConnectionProvider(client, LettuceReactiveRedisConnection.CODEC));

  //略
}
protected AbstractRedisClient createClient() {
  //略
  RedisURI uri = isDomainSocketAware()
    ? createRedisSocketURIAndApplySettings(((DomainSocketConfiguration) configuration).getSocket())
    : createRedisURIAndApplySettings(getHostName(), getPort());

  //clientConfiguration为：DefaultLettucePoolingClientConfiguration
  RedisClient redisClient = clientConfiguration.getClientResources() //
    .map(clientResources -> RedisClient.create(clientResources, uri)) //
    .orElseGet(() -> RedisClient.create(uri));
  clientConfiguration.getClientOptions().ifPresent(redisClient::setOptions);

  return redisClient;
}

首先创建RedisClient客户端
之后创建LettuceConnectionProvider，这里使用了装饰器模式：StandaloneConnectionProvider->LettucePoolingConnectionProvider->ExceptionTranslatingConnectionProvider，从名称上也能大概看出装-
- StandaloneConnectionProvider：独立的获取redis连接，底层使用Netty框架。
LettucePoolingConnectionProvider：redis连接池化技术，使用org.apache.commons.pool2.impl.GenericObjectPool
ExceptionTranslatingConnectionProvider：Redis连接异常转换。

2、Redis数据存取

SpringRedisGenericCache key-val 结构数据存储，支持key过期时间控制。
SpringRedisCache hash结构数据存储。

以SpringRedisGenericCache中setBytes方法为例分析RedisTemplate操作redis原理。

@Override
public void setBytes(String key, byte[] bytes, long timeToLiveInSeconds) {
  if (timeToLiveInSeconds <= 0) {
    log.debug(String.format("Invalid timeToLiveInSeconds value : %d , skipped it.", timeToLiveInSeconds));
    setBytes(key, bytes);
  } else {

    redisTemplate.execute((RedisCallback<List<byte[]>>) redis -> {
      redis.setEx(_key(key), (int) timeToLiveInSeconds, bytes);
      return null;
    });
  }
}

从源码中可以看到，RedisTemplate的execute方法入参为RedisCallback回调接口，主要用户获取到RedisConnection之后，再执行操作redis的底层代码。RedisTemplate的这种设计，将redis连接的获取与释放对使用者隐藏，redis的具体操作对使用者开放。

/*
* (non-Javadoc)
* @see org.springframework.data.redis.core.RedisOperations#execute(org.springframework.data.redis.core.RedisCallback)
*/
@Override
@Nullable
public <T> T execute(RedisCallback<T> action) {
  return execute(action, isExposeConnection());
}
@Nullable
public <T> T execute(RedisCallback<T> action, boolean exposeConnection, boolean pipeline) {

  Assert.isTrue(initialized, "template not initialized; call afterPropertiesSet() before using it");
  Assert.notNull(action, "Callback object must not be null");
  //获取RedisConnectionFactory，这里为LettuceConnectionFactory
  RedisConnectionFactory factory = getRequiredConnectionFactory();
  //获取RedisConnection，底层就是LettuceConnectionFactory.getConnection()
  RedisConnection conn = RedisConnectionUtils.getConnection(factory, enableTransactionSupport);

  try {

    boolean existingConnection = TransactionSynchronizationManager.hasResource(factory);
    RedisConnection connToUse = preProcessConnection(conn, existingConnection);

    boolean pipelineStatus = connToUse.isPipelined();
    if (pipeline && !pipelineStatus) {
      connToUse.openPipeline();
    }

    RedisConnection connToExpose = (exposeConnection ? connToUse : createRedisConnectionProxy(connToUse));
    //回调方法，具体的redis方法由使用者控制，这里将RedisConnection通过参数传给使用者
    T result = action.doInRedis(connToExpose);

    // close pipeline
    if (pipeline && !pipelineStatus) {
      connToUse.closePipeline();
    }

    return postProcessResult(result, connToUse, existingConnection);
  } finally {
    //释放RedisConnection
    RedisConnectionUtils.releaseConnection(conn, factory, enableTransactionSupport);
  }
}

使用模板设计模式与回调机制实现了操作redis的整个流程：

获取RedisConnectionFactory，测试时，这里为LettuceConnectionFactory
获取RedisConnection，底层就是LettuceConnectionFactory.getConnection()
回调方法，具体的redis方法由使用者控制，这里将RedisConnection通过参数传给使用者
释放RedisConnection

2.1、获取RedisConnection

2.1.1、Spring提供的redis连接工厂

RedisConnectionFactory–> ExceptionTranslatingConnectionProvider–>LettucePoolingConnectionProvider–>StandaloneConnectionProvider

/**
* Obtain a connection from the associated {@link LettuceConnectionProvider}.
*
* @return the connection.
*/
private StatefulConnection<E, E> getNativeConnection() {
  //connectionProvider为：ExceptionTranslatingConnectionProvider
  return connectionProvider.getConnection(StatefulConnection.class);
}
@Override
public <T extends StatefulConnection<?, ?>> T getConnection(Class<T> connectionType) {
  try {
    //delegate为LettucePoolingConnectionProvider
    return delegate.getConnection(connectionType);
  } catch (RuntimeException e) {
    //异常转换
    throw translateException(e);
  }
}
private final Map<Class<?>, GenericObjectPool<StatefulConnection<?, ?>>> pools = new ConcurrentHashMap<>(32);
private final Map<StatefulConnection<?, ?>, GenericObjectPool<StatefulConnection<?, ?>>> poolRef = new ConcurrentHashMap<>(32);
@Override
public <T extends StatefulConnection<?, ?>> T getConnection(Class<T> connectionType) {
  //GenericObjectPool:org.apache.commons.pool2.impl.GenericObjectPool
  GenericObjectPool<StatefulConnection<?, ?>> pool = pools.computeIfAbsent(connectionType, poolType -> {
    //connectionProvider为：StandaloneConnectionProvider
    return ConnectionPoolSupport.createGenericObjectPool(() -> connectionProvider.getConnection(connectionType),
                                                         poolConfig, false);
  });

  try {
    StatefulConnection<?, ?> connection = pool.borrowObject();
    poolRef.put(connection, pool);
    return connectionType.cast(connection);
  } catch (Exception e) {
    throw new PoolException("Could not get a resource from the pool", e);
  }
}
@Override
public <T extends StatefulConnection<?, ?>> CompletionStage<T> getConnectionAsync(Class<T> connectionType) {
  return getConnectionAsync(connectionType, redisURISupplier.get());
}
@Override
public <T extends StatefulConnection<?, ?>> T getConnection(Class<T> connectionType) {

  if (connectionType.equals(StatefulRedisSentinelConnection.class)) {
    return connectionType.cast(client.connectSentinel());
  }

  if (connectionType.equals(StatefulRedisPubSubConnection.class)) {
    return connectionType.cast(client.connectPubSub(codec));
  }

  if (StatefulConnection.class.isAssignableFrom(connectionType)) {
    //获取redis连接，这里的client为：io.lettuce.core.RedisClient
    return connectionType.cast(readFrom.map(it -> this.masterReplicaConnection(redisURISupplier.get(), it))
                               .orElseGet(() -> client.connect(codec)));
  }

  throw new UnsupportedOperationException("Connection type " + connectionType + " not supported!");
}

2.1.2、Lettuce创建连接

阅读创建Redis连接的代码有以下几个难点：

CompletableFuture的使用
Lettuce的EventRecorder
Reactor的Mono使用
Netty的使用

2.1.2.1、入口connect

public <K, V> StatefulRedisConnection<K, V> connect(RedisCodec<K, V> codec, RedisURI redisURI) {
  assertNotNull(redisURI);
    //connectStandaloneAsync是异步创建connection，返回的是Future对象，
    //通过getConnection转为同步操作
  return getConnection(connectStandaloneAsync(codec, redisURI, redisURI.getTimeout()));
}

依次通过connectStandaloneAsync->connectStatefulAsync->initializeChannelAsync->initializeChannelAsync0等方法找到Netty连接Redis源码。

2.1.2.2、connectStandaloneAsync

主要创建StatefulRedisConnectionImpl对象，StatefulRedisConnectionImpl对外提供RedisCommand对象，内部基于writer发送命令。

private <K, V> ConnectionFuture<StatefulRedisConnection<K, V>> connectStandaloneAsync(RedisCodec<K, V> codec,
                                                                                      RedisURI redisURI, Duration timeout) {

  assertNotNull(codec);
  checkValidRedisURI(redisURI);

  logger.debug("Trying to get a Redis connection for: {}", redisURI);
  //创建一个有状态的EndPoint用于抽象底层channel的实现，
  // DefaultEndpoint内部封装断线重连、重连后成功后回放连接失败期间的command。
  // 同时封装了AT_MOST_ONCE、AT_LEAST_ONCE的可靠性实现（该逻辑是基于内存的，所以并不可靠）。
  DefaultEndpoint endpoint = new DefaultEndpoint(getOptions(), getResources());
  RedisChannelWriter writer = endpoint;

  //装饰器，添加支持过期时间的执行命令
  if (CommandExpiryWriter.isSupported(getOptions())) {
    writer = new CommandExpiryWriter(writer, getOptions(), getResources());
  }

  //装饰器，添加Redis事件监听
  if (CommandListenerWriter.isSupported(getCommandListeners())) {
    writer = new CommandListenerWriter(writer, getCommandListeners());
  }

  // 创建StatefulRedisConnectionImpl对象，StatefulRedisConnectionImpl对外提供RedisCommand对象，内部基于writer发送命令。
  // 此时并没有真正的创建物理连接，该类本身是无状态、线程安全的。
  //StatefulRedisConnectionImpl的构造函数中已经创建了sync、async、reactive三种类型的RedisCommand。
  // 基于RedisCodec对key和value序列化，通过write把命令真正的发出去。
  StatefulRedisConnectionImpl<K, V> connection = newStatefulRedisConnection(writer, endpoint, codec, timeout);

  //异步创建Redis物理连接，返回future对象。后面可以看到future中返回的对象其实还是上面的connection
  ConnectionFuture<StatefulRedisConnection<K, V>> future = connectStatefulAsync(connection, endpoint, redisURI,
                                                                                () -> new CommandHandler(getOptions(), getResources(), endpoint));

  //当CompletableFuture的任务不论是正常完成还是出现异常它都会调用whenComplete这回调函数
  future.whenComplete((channelHandler, throwable) -> {
    //正常完成：whenComplete返回结果和上级任务一致，异常为null；
    //出现异常：whenComplete返回结果为null，异常为上级任务的异常；
    if (throwable != null) {
      //发生异常后，异步关闭连接
      connection.closeAsync();
    }
  });

  return future;
}

2.1.2.3、connectStatefulAsync

构建ConnectionBuilder，通过ConnectionBuilder来创建connection。

@SuppressWarnings("unchecked")
private <K, V, S> ConnectionFuture<S> connectStatefulAsync(StatefulRedisConnectionImpl<K, V> connection, Endpoint endpoint,
                                                           RedisURI redisURI, Supplier<CommandHandler> commandHandlerSupplier) {
  //构建ConnectionBuilder，通过ConnectionBuilder来创建connection
  ConnectionBuilder connectionBuilder;
  if (redisURI.isSsl()) {
    SslConnectionBuilder sslConnectionBuilder = SslConnectionBuilder.sslConnectionBuilder();
    sslConnectionBuilder.ssl(redisURI);
    connectionBuilder = sslConnectionBuilder;
  } else {
    connectionBuilder = ConnectionBuilder.connectionBuilder();
  }

  ConnectionState state = connection.getConnectionState();
  state.apply(redisURI);
  state.setDb(redisURI.getDatabase());

  //填充StatefulRedisConnectionImpl
  connectionBuilder.connection(connection);
  //控制RedisClient行为的一些配置参数
  connectionBuilder.clientOptions(getOptions());
  //ClientResource包含了一些EventLoopGroup信息
  connectionBuilder.clientResources(getResources());
  //配置commandHandlerSupplier，这个commandHandler很重要，是实现StatefulRedisConnectionImpl线程安全的关键，后面会详细讲。
  connectionBuilder.commandHandler(commandHandlerSupplier).endpoint(endpoint);
  //connectionBuilder填充Bootstrap、channelGroup等更多的信息
  //getSocketAddressSupplier是根据redisURI获取真正的Redis连接信息，如：sentinel模式下，需要从sentinel获取到真实的redis连接地址
  //通过Mono.defer创建Mono<SocketAddress>，属于懒汉模式
  connectionBuilder(getSocketAddressSupplier(redisURI), connectionBuilder, connection.getConnectionEvents(), redisURI);
  //初始化连接准备工作
  connectionBuilder.connectionInitializer(createHandshake(state));
  //初始化redis连接，返回ChannelFuture对象，真正的异步的去创建物理连接
  ConnectionFuture<RedisChannelHandler<K, V>> future = initializeChannelAsync(connectionBuilder);

  //把上一个线程的结果“应用于”下一个线程的计算。相当于结果值的传递。
  return future.thenApply(channelHandler -> (S) connection);
}

getSocketAddressSupplier方法中，通过Mono.defer懒汉方式创建 Mono对象。

private Mono<SocketAddress> getSocketAddressSupplier(RedisURI redisURI) {
  return getSocketAddress(redisURI).doOnNext(addr -> logger.debug("Resolved SocketAddress {} using {}", addr, redisURI));
}
protected Mono<SocketAddress> getSocketAddress(RedisURI redisURI) {

  return Mono.defer(() -> {

    if (redisURI.getSentinelMasterId() != null && !redisURI.getSentinels().isEmpty()) {
      logger.debug("Connecting to Redis using Sentinels {}, MasterId {}", redisURI.getSentinels(),
                   redisURI.getSentinelMasterId());
      return lookupRedis(redisURI).switchIfEmpty(Mono.error(new RedisConnectionException(
        "Cannot provide redisAddress using sentinel for masterId " + redisURI.getSentinelMasterId())));

    } else {
      return Mono.fromCallable(() -> getResources().socketAddressResolver().resolve((redisURI)));
    }
  });
}

connectionBuilder方法中创建了Netty客户端的Bootstrap对象，并配置Netty的各种参数。

protected void connectionBuilder(Mono<SocketAddress> socketAddressSupplier, ConnectionBuilder connectionBuilder,
                                 ConnectionEvents connectionEvents, RedisURI redisURI) {
  //创建Netty客户端的Bootstrap对象
  Bootstrap redisBootstrap = new Bootstrap();
  //Bootstrap的一些配置参数，具体可以参考Netty的相关书籍（Netty权威指南）
  redisBootstrap.option(ChannelOption.ALLOCATOR, ByteBufAllocator.DEFAULT);
  connectionBuilder.bootstrap(redisBootstrap);
  //Netty参数配置
  connectionBuilder.apply(redisURI);
  //EventLoopGroup
  connectionBuilder.configureBootstrap(!LettuceStrings.isEmpty(redisURI.getSocket()), this::getEventLoopGroup);
  //ChannelGroup
  connectionBuilder.channelGroup(channels).connectionEvents(connectionEvents == this.connectionEvents ? connectionEvents
                                                            : ConnectionEvents.of(this.connectionEvents, connectionEvents));
  //配置socket地址提供者
  connectionBuilder.socketAddressSupplier(socketAddressSupplier);
}

2.1.2.4、initializeChannelAsync

SocketAddress及Channel对象的异步处理，最终调用真正获取物理连接的方法initializeChannelAsync0

protected <K, V, T extends RedisChannelHandler<K, V>> ConnectionFuture<T> initializeChannelAsync(
  ConnectionBuilder connectionBuilder) {

  //通过Mono.defer创建的Mono<SocketAddress>，属于懒汉模式
  Mono<SocketAddress> socketAddressSupplier = connectionBuilder.socketAddress();

  if (clientResources.eventExecutorGroup().isShuttingDown()) {
    throw new IllegalStateException("Cannot connect, Event executor group is terminated.");
  }

  //创建socketAddressFuture 对象
  //当socketAddressSupplier异步获取SocketAddress成功之后会把SocketAddress数据放入该对象中
  CompletableFuture<SocketAddress> socketAddressFuture = new CompletableFuture<>();
  //创建channelReadyFuture，当连接建立成功之后会把Channel对象放入该对象中
  CompletableFuture<Channel> channelReadyFuture = new CompletableFuture<>();

  String uriString = connectionBuilder.getRedisURI().toString();

  //事件检录，依赖jdk.jfr.Event，好像是JDK11之后才有
  EventRecorder.getInstance().record(
    new ConnectionCreatedEvent(uriString, connectionBuilder.endpoint().getId()));

  EventRecorder.RecordableEvent event = EventRecorder.getInstance()
    .start(new ConnectEvent(uriString, connectionBuilder.endpoint().getId()));

  //channelReadyFuture完成后执行
  channelReadyFuture.whenComplete((channel, throwable) -> {
    //完成事件报告
    event.record();
  });

  //配置获取SocketAddress异步操作之后的操作：
  //1. 把SocketAddress对象放入socketAddressFuture中
  //2. 基于SocketAddress调用initializeChannelAsync0方法真正去建立连接
  socketAddressSupplier
    //发生错误后执行
    .doOnError(socketAddressFuture::completeExceptionally)
    //成功后执行
    .doOnNext(socketAddressFuture::complete)
    //订阅Mono
    .subscribe(redisAddress -> {
      //如果此CompletableFuture在正常完成之前被取消，则返回true。
      if (channelReadyFuture.isCancelled()) {
        return;
      }
      //异步建立真正的连接，如果建立成功会把生产的Channel对象放入channelReadyFuture中
      initializeChannelAsync0(connectionBuilder, channelReadyFuture, redisAddress);
    }, channelReadyFuture::completeExceptionally);
  //建立连接成功之后返回的还是connectionBuilder的connection对象，即StatefulRedisConnectionImpl
  return new DefaultConnectionFuture<>(socketAddressFuture, channelReadyFuture.thenApply(channel -> (T) connectionBuilder.connection()));
}

2.1.2.5、initializeChannelAsync0

操作Netty创建连接，大量使用了CompletableFuture等异步编程方式，代码看着比较吃力。

private void initializeChannelAsync0(ConnectionBuilder connectionBuilder, CompletableFuture<Channel> channelReadyFuture,
                                     SocketAddress redisAddress) {

  logger.debug("Connecting to Redis at {}", redisAddress);

  Bootstrap redisBootstrap = connectionBuilder.bootstrap();
  //创建PlainChannelInitializer对象，PlainChannelInitializer对象会在Channel初始化的时候添加很多Handlers（Netty的Handler概念可以参考Netty权威指南），
  // 如：CommandEncoder、CommandHandler（非常重要的Handler）、ConnectionWatchdog（实现断线重连）
  ChannelInitializer<Channel> initializer = connectionBuilder.build(redisAddress);
  //RedisChannelInitializer配置到Bootstrap中
  redisBootstrap.handler(initializer);
  //调用一些通过ClientResources自定义的回调函数
  clientResources.nettyCustomizer().afterBootstrapInitialized(redisBootstrap);
  //真正的通过Netty异步的方式去建立物理连接，返回ChannelFuture对象
  ChannelFuture connectFuture = redisBootstrap.connect(redisAddress);


  channelReadyFuture.whenComplete((c, t) -> {
    //异常处理
    if (t instanceof CancellationException) {
      //netty取消连接
      connectFuture.cancel(true);
    }
  });

  //netty 增加监听
  connectFuture.addListener(future -> {

    if (!future.isSuccess()) {
      logger.debug("Connecting to Redis at {}: {}", redisAddress, future.cause());
      //重置
      connectionBuilder.endpoint().initialState();
      //记录异常
      channelReadyFuture.completeExceptionally(future.cause());
      return;
    }

    //必须有RedisHandshakeHandler，使用ConnectionInitializer初始化连接
    RedisHandshakeHandler handshakeHandler = connectFuture.channel().pipeline().get(RedisHandshakeHandler.class);
    if (handshakeHandler == null) {
      //记录异常
      channelReadyFuture.completeExceptionally(new IllegalStateException("RedisHandshakeHandler not registered"));
      return;
    }

    //future to synchronize channel initialization. Returns a new future for every reconnect.
    //连接redis完成后执行
    handshakeHandler.channelInitialized().whenComplete((success, throwable) -> {
      //如果异常为空，则初始化成功。
      if (throwable == null) {
        logger.debug("Connecting to Redis at {}: Success", redisAddress);
        RedisChannelHandler<?, ?> connection = connectionBuilder.connection();
        connection.registerCloseables(closeableResources, connection);
        //把成功之后的结果赋值给channelReadyFuture对象
        channelReadyFuture.complete(connectFuture.channel());
        return;
      }

      logger.debug("Connecting to Redis at {}, initialization: {}", redisAddress, throwable);
      //将此端点重置为其初始状态，清除所有缓冲区并可能关闭绑定的通道。
      connectionBuilder.endpoint().initialState();
      //记录异常
      channelReadyFuture.completeExceptionally(throwable);
    });
  });
}

2.2、redis操作

以插入数据为例，分析下spring通过lettuce操作redis。

//获取LettuceConnection
RedisConnection connection = connectionFactory.getConnection();
//set操作
connection.set("key".getBytes(StandardCharsets.UTF_8), "123".getBytes(StandardCharsets.UTF_8));

这里的connection为：org.springframework.data.redis.connection.lettuce.LettuceConnection

//继承RedisCommands接口
public interface RedisConnection extends RedisCommands, AutoCloseable {//略}
//定义了redis的各种操作
public interface RedisCommands extends RedisKeyCommands, RedisStringCommands, RedisListCommands, RedisSetCommands,
  RedisZSetCommands, RedisHashCommands, RedisTxCommands, RedisPubSubCommands, RedisConnectionCommands,
  RedisServerCommands, RedisStreamCommands, RedisScriptingCommands, RedisGeoCommands, RedisHyperLogLogCommands {    @Nullable
    Object execute(String command, byte[]... args);
}

通过debug，依次经过以下方法：

org.springframework.data.redis.connection.DefaultedRedisConnection#set(byte[], byte[])
org.springframework.data.redis.connection.lettuce.LettuceConnection#stringCommands
org.springframework.data.redis.connection.lettuce.LettuceStringCommands#set(byte[], byte[])

2.2.1、Spring提供的LettuceInvoker，根据异步连接操作Lettuce的方法

@Override
public Boolean set(byte[] key, byte[] value) {
  //略
  //这里的connection还是LettuceConnection
  return connection.invoke().from(RedisStringAsyncCommands::set, key, value)
    .get(Converters.stringToBooleanConverter());
}

2.2.1.1、LettuceConnection#invoke()方法返回的LettuceInvoker对象

用户Lettuce方法的函数调用. 通常用于将方法调用表示为方法引用，并通过just或from方法之一传递方法参数。

ust方法记录方法调用并立即评估方法结果。

from方法允许组成一个pipeline ，使用转换器转换结果。

Usage example:

LettuceInvoker invoker = …;

Long result = invoker.just(RedisGeoAsyncCommands::geoadd, key, point.getX(), point.getY(), member);

List<byte[]> result = invoker.fromMany(RedisGeoAsyncCommands::geohash, key, members).toList(it -> it.getValueOrElse(null));

RedisFuture委托给LettuceInvoker管理。

Synchronizer可以等待完成，也可以记录转换器的future，以便进一步处理。

LettuceInvoker invoke() {
  return invoke(getAsyncConnection());
}

LettuceInvoker invoke(RedisClusterAsyncCommands<byte[], byte[]> connection) {
  return doInvoke(connection, false);
}
private LettuceInvoker doInvoke(RedisClusterAsyncCommands<byte[], byte[]> connection, boolean statusCommand) {
  //略
  return new LettuceInvoker(connection, (future, converter, nullDefault) -> {
    try {
      Object result = await(future.get());
      if (result == null) {
        return nullDefault.get();
      }
      return converter.convert(result);
    } catch (Exception ex) {
      throw convertLettuceAccessException(ex);
    }
  });
}
	@Nullable
private <T> T await(RedisFuture<T> cmd) {
		if (isMulti) {
			return null;
		}
		try {
			return LettuceFutures.awaitOrCancel(cmd, timeout, TimeUnit.MILLISECONDS);
		} catch (RuntimeException e) {
			throw convertLettuceAccessException(e);
		}
	}

getAsyncConnection获取异步连接

在分析获取RedisConnection的时候，了解到StatefulRedisConnectionImpl中维护了RedisAsyncCommandsImpl的实现对象。
这里异步获取连接的async属性（RedisAsyncCommandsImpl实现对象）

RedisClusterAsyncCommands<byte[], byte[]> getAsyncConnection() {
  if (isQueueing() || isPipelined()) {
    return getAsyncDedicatedConnection();
  }
  if (asyncSharedConn != null) {
    if (asyncSharedConn instanceof StatefulRedisConnection) {
      return ((StatefulRedisConnection<byte[], byte[]>) asyncSharedConn).async();
    }
    if (asyncSharedConn instanceof StatefulRedisClusterConnection) {
      return ((StatefulRedisClusterConnection<byte[], byte[]>) asyncSharedConn).async();
    }
  }
  return getAsyncDedicatedConnection();
}

async对象设置与获取

@Override
public RedisAsyncCommands<K, V> async() {
  return async;
}

public StatefulRedisConnectionImpl(RedisChannelWriter writer, PushHandler pushHandler, RedisCodec<K, V> codec,
                                   Duration timeout) {

  super(writer, timeout);

  this.pushHandler = pushHandler;
  this.codec = codec;
  this.async = newRedisAsyncCommandsImpl();
  this.sync = newRedisSyncCommandsImpl();
  this.reactive = newRedisReactiveCommandsImpl();
}

2.2.1.2、LettuceInvoker的from方法

这里阅读源码的难点在于：@FunctionalInterface函数式接口和lambda表达式。

了解两个前提：

创建redis连接的时候，在io.lettuce.core.RedisClient#connectStandaloneAsync方法中调用了newStatefulRedisConnection方法，最终new了一个StatefulRedisConnectionImpl，注意其中的async属性。
上个小节中LettuceInvoker中的connection属性就是这个async，即RedisAsyncCommandsImpl对象。

public Boolean set(byte[] key, byte[] value) {
  //创建function的方式一
  LettuceInvoker.ConnectionFunction2<byte[], byte[], String> function = new LettuceInvoker.ConnectionFunction2<byte[], byte[], String>() {
    @Override
    public RedisFuture<String> apply(RedisClusterAsyncCommands<byte[], byte[]> connection, byte[] key, byte[] value) {
      return connection.set(key,value);
    }
  };
  //创建function的方式二
  LettuceInvoker.ConnectionFunction2<byte[], byte[], String> function = (connection, key1, value1) -> connection.set(key1, value1);
  //创建function的方式三
  LettuceInvoker.ConnectionFunction2<byte[], byte[], String> function = RedisStringAsyncCommands::set;
  return connection.invoke().from(function, key, value)
    .get(Converters.stringToBooleanConverter());
}
@FunctionalInterface
interface ConnectionFunction2<T1, T2, R> {
  //RedisClusterAsyncCommands带有两个参数调用方法，返回值为io.lettuce.core.RedisFuture
  RedisFuture<R> apply(RedisClusterAsyncCommands<byte[], byte[]> connection, T1 t1, T2 t2);
}
//组合pipeline
<R, T1, T2> SingleInvocationSpec<R> from(ConnectionFunction2<T1, T2, R> function, T1 t1, T2 t2) {
  Assert.notNull(function, "ConnectionFunction must not be null");
  //创建function2的方式一
  ConnectionFunction0<R> function2 = new ConnectionFunction0<R>() {
    @Override
    public RedisFuture<R> apply(RedisClusterAsyncCommands<byte[], byte[]> connection) {
      return function.apply(connection, t1, t2);
    }
  };
  //创建function2的方式二
  ConnectionFunction0<R> function2 = connection -> function.apply(connection, t1, t2);
  return from(function2);
}

@FunctionalInterface
interface ConnectionFunction0<R> {
  //RedisClusterAsyncCommands无参数调用方法，返回值为io.lettuce.core.RedisFuture
  RedisFuture<R> apply(RedisClusterAsyncCommands<byte[], byte[]> connection);
}
//组合pipeline
<R> SingleInvocationSpec<R> from(ConnectionFunction0<R> function) {
  Assert.notNull(function, "ConnectionFunction must not be null");
  //创建parent的方式一
  Supplier<RedisFuture<R>> parent = new Supplier<RedisFuture<R>>() {
    @Override
    public RedisFuture<R> get() {
      return function.apply(connection);
    }
  };
  //创建parent的方式二
  Supplier<RedisFuture<R>> parent = () -> function.apply(connection);
  return new DefaultSingleInvocationSpec<>(parent, synchronizer);
}

从代码中可以看出，Spring的LettuceInvoker对RedisClusterAsyncCommands做了一个编排，组装好DefaultSingleInvocationSpec对象，最后在调用SingleInvocationSpec的get方法。

2.2.1.3、SingleInvocationSpec的get方法

//.get(Converters.stringToBooleanConverter());
@Override
public <T> T get(Converter<S, T> converter) {
  Assert.notNull(converter, "Converter must not be null");
  return synchronizer.invoke(parent, converter, () -> null);
}

converter为Converters.stringToBooleanConverter()，将返回的“OK”字符串转Boolean true
parent为RedisFuture

synchronizer为LettuceInvoker.Synchronizer，在2.2.1.1小节能看到：new LettuceInvoker的方法中，传入了synchronizer：

LettuceInvoker.Synchronizer synchronizer = new LettuceInvoker.Synchronizer() {
  @Override
  public Object doInvoke(Supplier<RedisFuture<Object>> futureSupplier, Converter<Object, Object> converter, Supplier<Object> nullDefault) {
    try {
      //先执行futureSupplier.get()，之后再执行await
      Object result = await(futureSupplier.get());

      if (result == null) {
        return nullDefault.get();
      }

      return converter.convert(result);
    } catch (Exception ex) {
      throw convertLettuceAccessException(ex);
    }
  }
};
	@Nullable
	private <T> T await(RedisFuture<T> cmd) {
		if (isMulti) {
			return null;
		}
		try {
			return LettuceFutures.awaitOrCancel(cmd, timeout, TimeUnit.MILLISECONDS);
		} catch (RuntimeException e) {
			throw convertLettuceAccessException(e);
		}
	}
